72HY04Z1
Wheel Dressing Spindles
HOYO Technical Datasheet

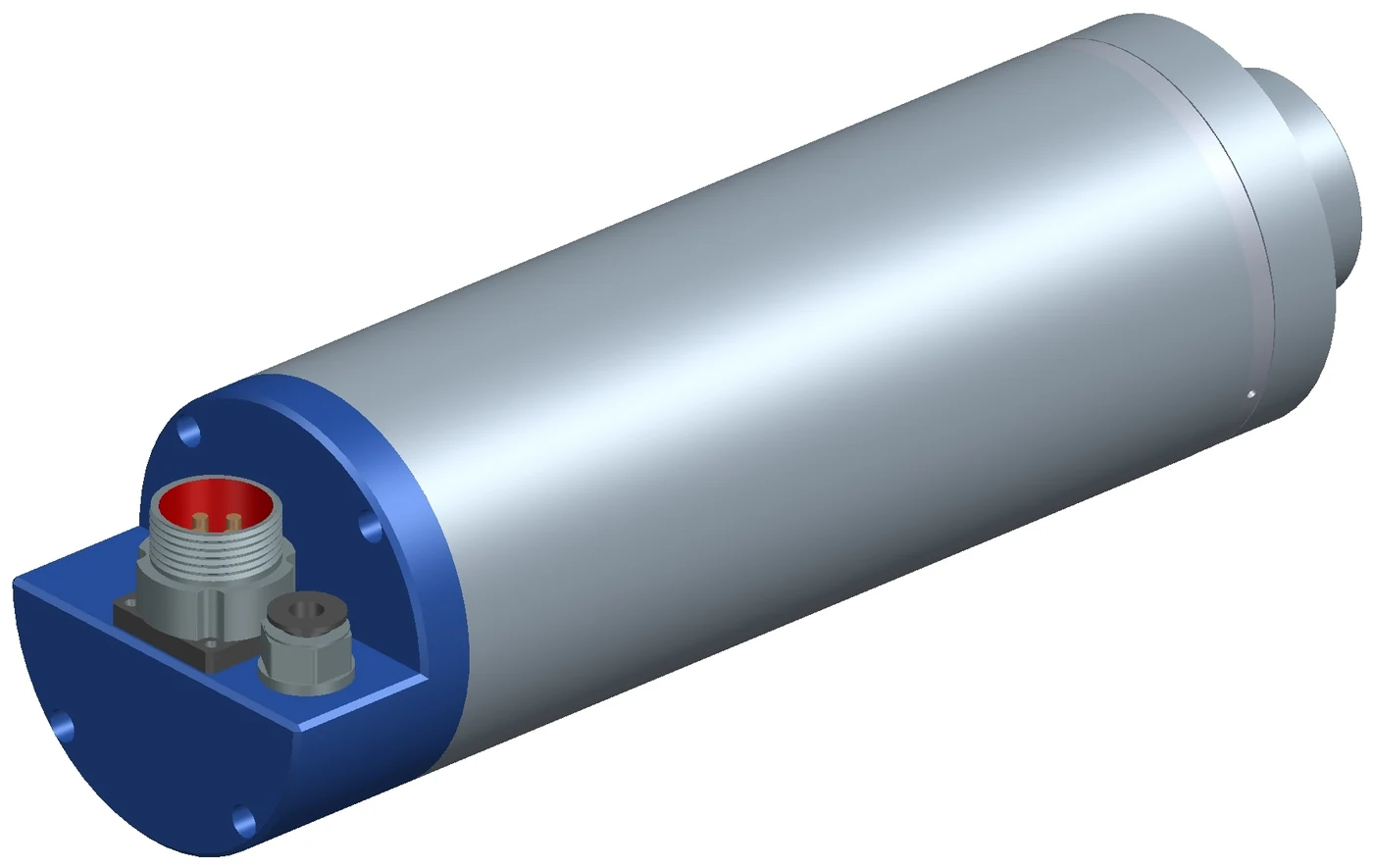

General view
Side

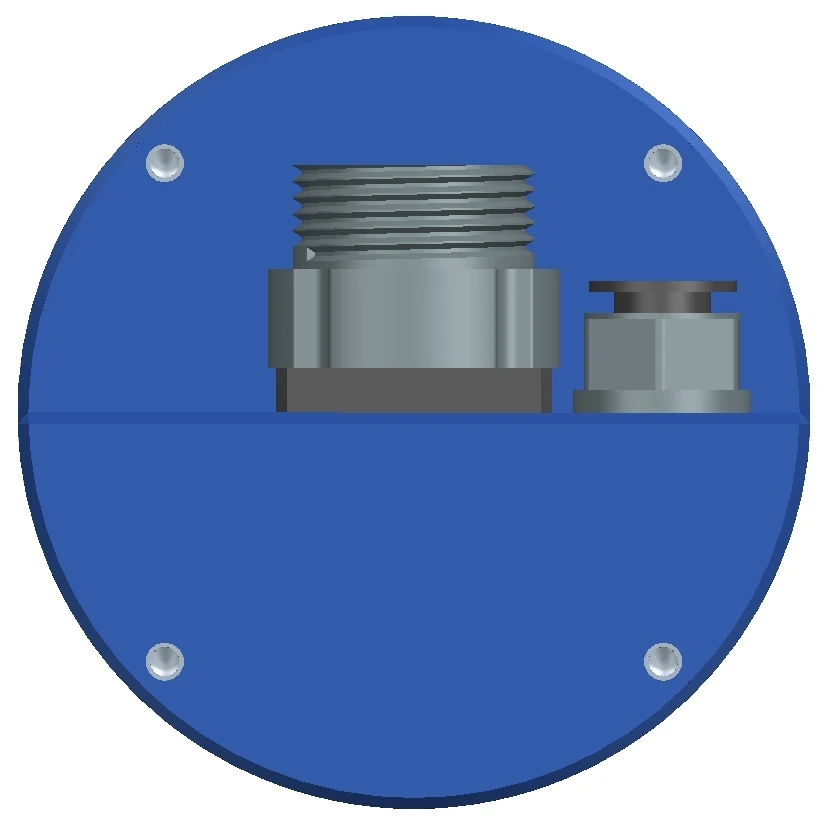

Connection face
Ratings
- Synchronous speed
- 4,000 rpm
- Maximum speed
- 8,000 rpm
- Rated power
- 1 kW (S1)
- Rated torque
- 2.4 N·m
- Rated frequency
- 133.3 Hz
- Maximum frequency
- 266.7 Hz
- Rated voltage
- 380 V
- Rated current
- 1.7 A
- Motor
- Permanent-magnet synchronous, 4-pole
- Direction of rotation
- Bidirectional
- Lubrication
- Grease
- Cooling
- Air
- Sealing
- Labyrinth seal with air purge
- Mounting
- Horizontal
- Thermal sensor
- KTY84, motor and bearings
Bearings & shaft end
- Front
- 71908C / P4 ×2
- Rear
- 7002C / P4 ×2
- Shaft diameter
- Ø40 −0.001 / −0.003
Connections
- Aviation power connector
- Quick-fit air seal
Dimensions (mm)
- Body diameter
- Ø72 0 / −0.01
- Flange diameter
- Ø71.8
- Overall length
- 249.2
- Nose projection
- 20
- Bolt circle
- Ø60
- Register diameter
- Ø56
- Mounting holes
- 8 × M5 depth 10, at 45°
