56HY06Z0.35
Wheel Dressing Spindles
HOYO Technical Datasheet

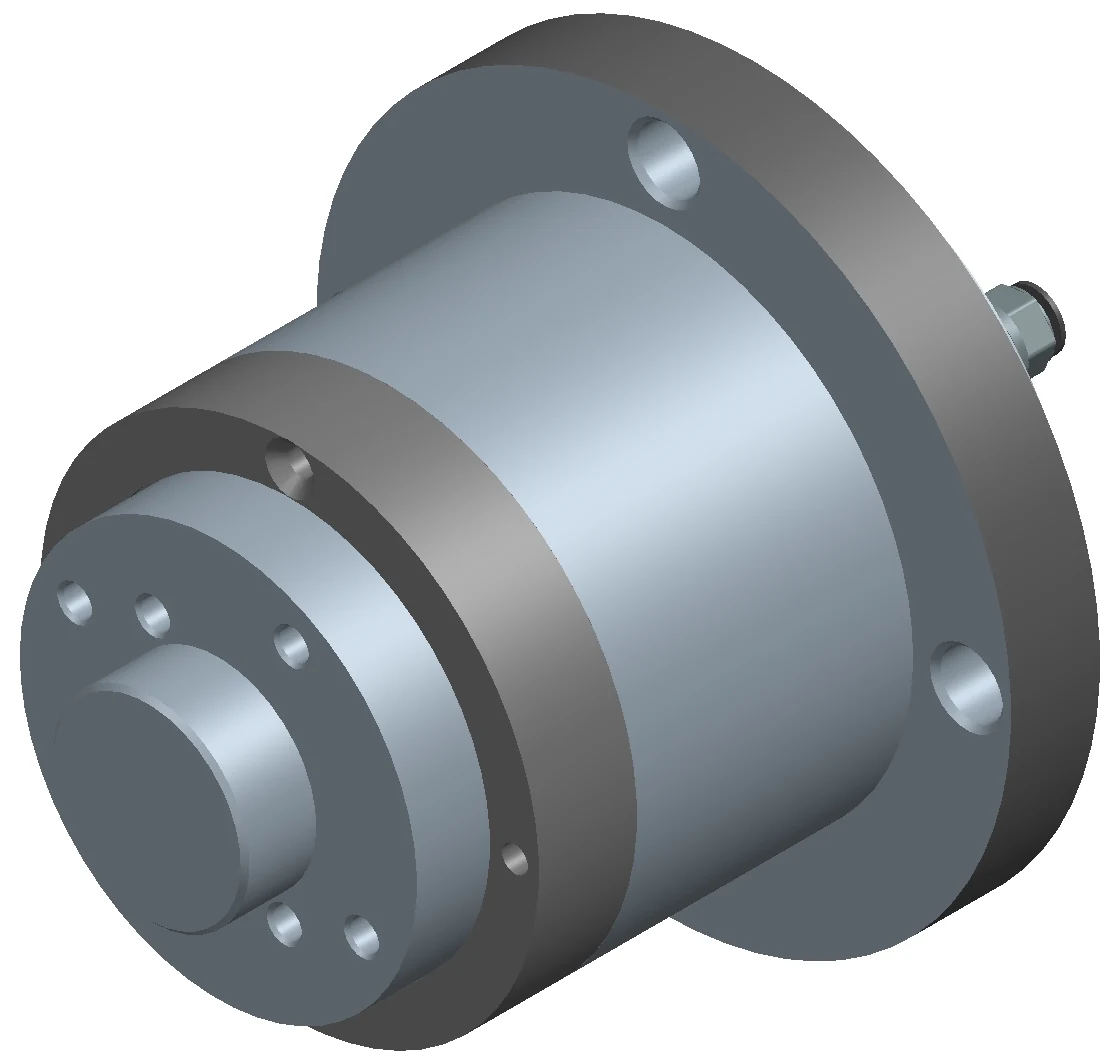

General view
Side

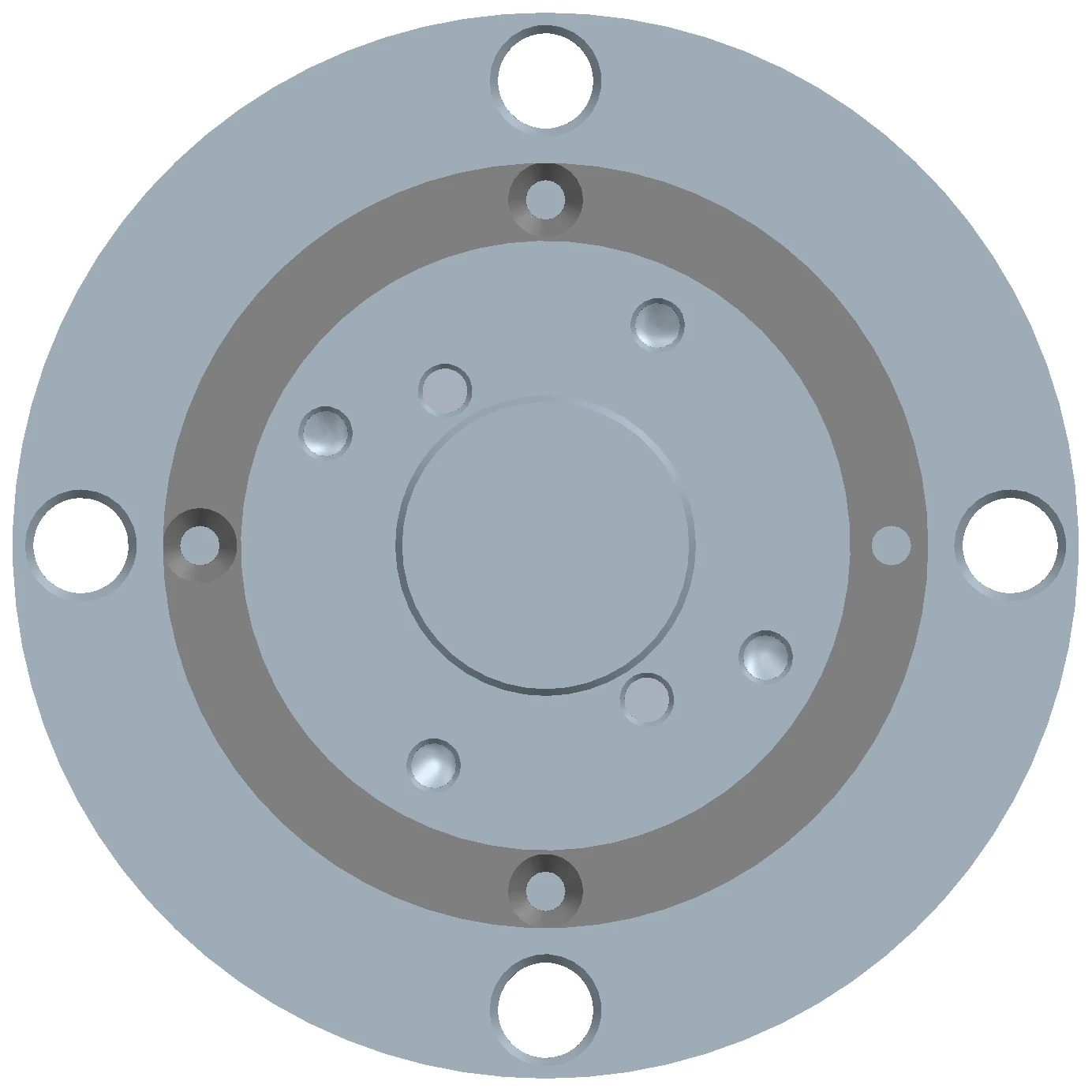

Connection face
Ratings
- Rated speed
- 6,000 rpm
- Maximum speed
- 8,000 rpm
- Rated power
- 0.35 kW (S1)
- Rated torque
- 0.56 N·m
- Rated frequency
- 300 Hz
- Maximum frequency
- 400 Hz
- Rated voltage
- 110 V
- Rated current
- 1.9 A
- Peak current
- 3.1 A
- Motor
- Three-phase synchronous, 6-pole
- Lubrication
- Grease
- Sealing
- Air purge seal
- Mounting
- Horizontal
- Power cable
- 3 m standard, longer on request
Precision
- Nose face and OD runout
- ≤ 2 μm
- Vibration severity
- N max below 0.6 mm/s
Bearings & shaft end
- Front
- 71901C / P4 ×1
- Rear
- 708C / P4 ×1
- Shaft diameter
- Ø22 −0.001 / −0.003
Connections
- Power connector
- Air cooling connector
- Power connector
- M10×1.5 cable gland
- Air cooling connector
- M5 quick fitting for Ø4 plastic tube
Dimensions (mm)
- Body diameter
- Ø56 0 / −0.002
- Flange diameter
- Ø78
- Front flange diameter
- Ø68
- Rear register
- Ø36
- Nose diameter
- Ø44.6
- Overall length
- 76
- Body length
- 58
- Flange thickness
- 10
- Mounting holes
- 4 × M4 equally spaced on circle
