40HY12Z0.1
Wheel Dressing Spindles
HOYO Technical Datasheet

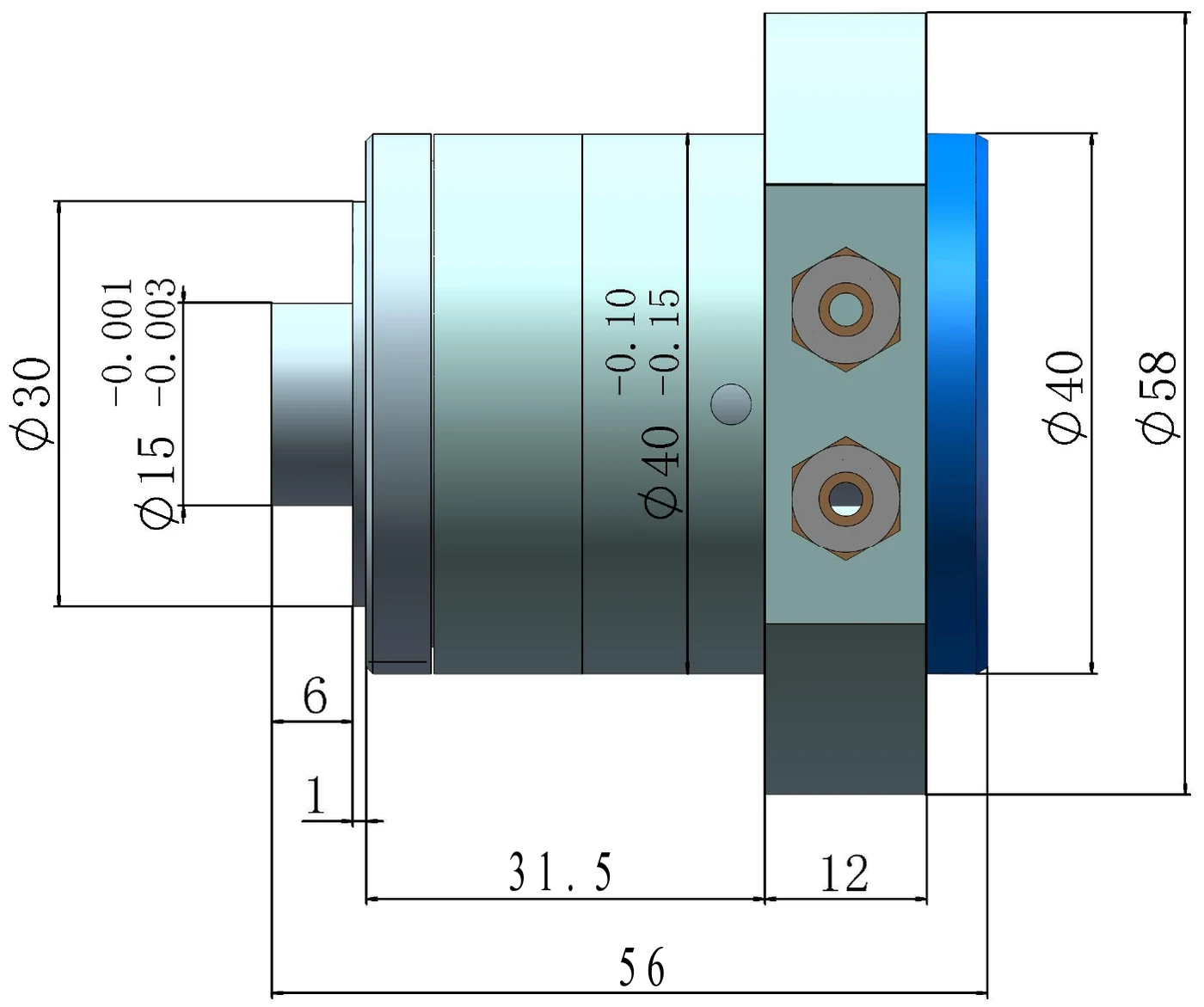

General view
Ratings
- Rated speed
- 12,000 rpm
- Rated power
- 0.1 kW (S1)
- Rated torque
- 0.08 N·m
- Rated frequency
- 600 Hz
- Rated voltage
- 110 V
- Rated current
- 0.6 A
- Motor
- Three-phase synchronous, 6-pole
- Direction of rotation
- Counter-clockwise viewed from the front
- Lubrication
- Grease
- Cooling
- Closed-loop water (or oil)
- Sealing
- Air purge seal
- Mounting
- Horizontal
- Encoder
- None
- Power cable
- 5 m
Precision
- Face runout
- ≤ 1 μm
- Radial runout
- ≤ 2 μm
- Vibration severity
- N max below 0.6 mm/s
Bearings & shaft end
- Front
- 71900C / P4 ×2
- Rear
- 695C / P4 ×1
- Shaft diameter
- Ø15 −0.001 / −0.003
Connections
- Air port
- Power connector
Dimensions (mm)
- Body diameter
- Ø40 −0.10 / −0.15
- Flange diameter
- Ø58
- Front section diameter
- Ø30
- Rear diameter
- Ø40
- Overall length
- 56
- Body length
- 31.5
- Rear section
- 12
- Bolt circle
- Ø48
- Mounting holes
- 6 × M3 depth 4, equally spaced
