150HY36Q12
Internal Grinding & Milling Spindles
HOYO Technical Datasheet

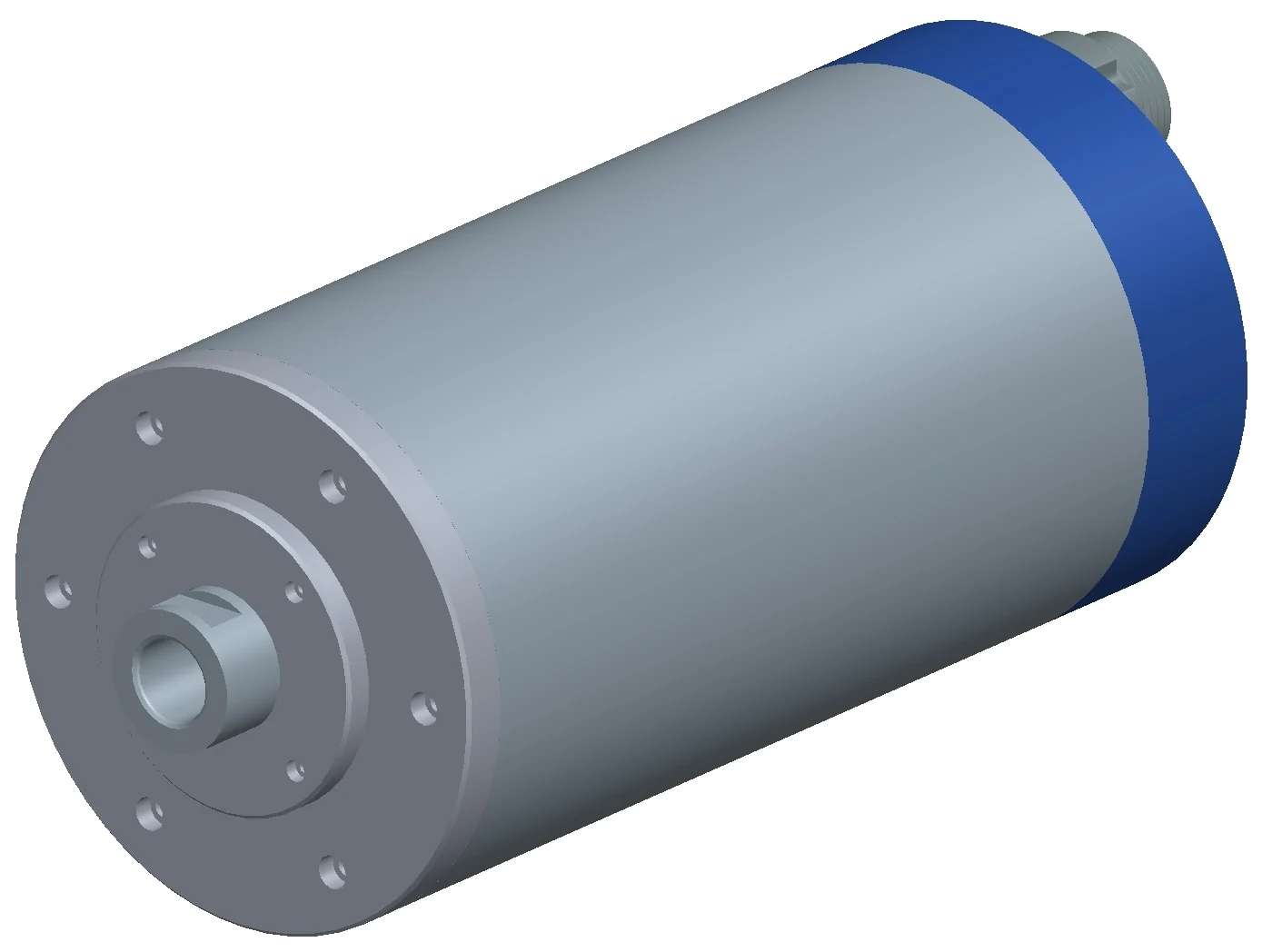

General view
Side

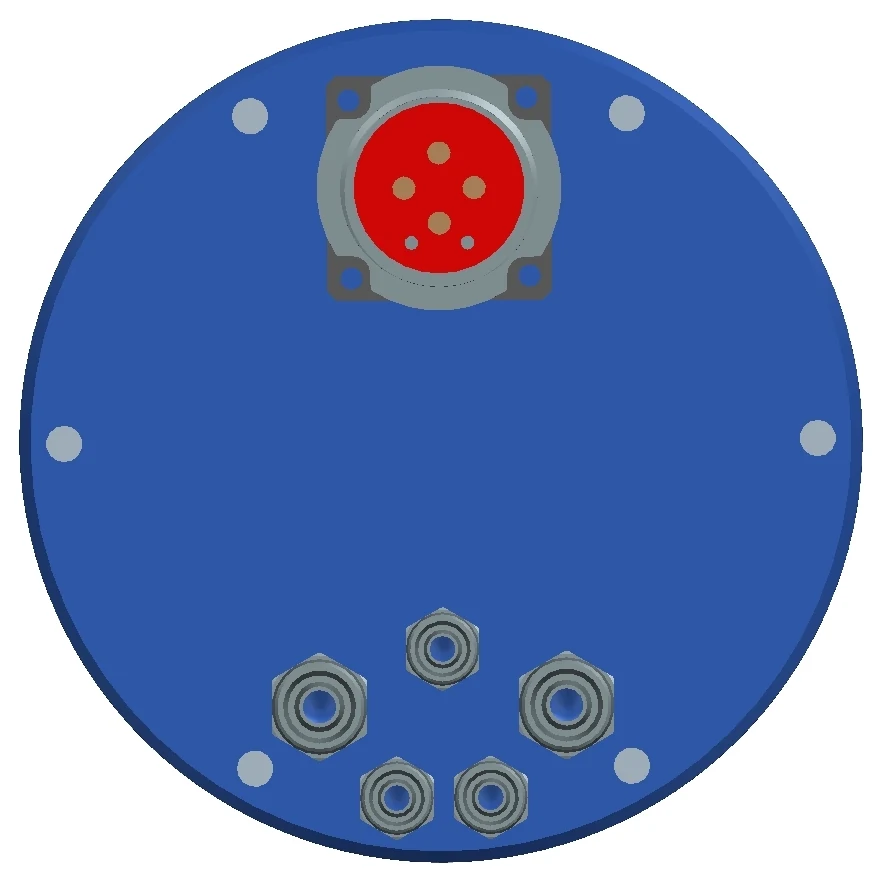

Connection face
Ratings
- Rated speed
- 36,000 rpm
- Rated power
- 12 kW (S1)
- Rated torque
- 3.2 N·m
- Rated frequency
- 600 Hz
- Rated voltage
- 380 V
- Rated current
- 24 A
- Motor
- Induction asynchronous, 2-pole
- Direction of rotation
- Counter-clockwise viewed from the wheel mounting end
- Lubrication
- Oil-air
- Cooling
- Closed-loop water (or oil)
- Sealing
- Labyrinth seal with positive air pressure
- Mounting
- Horizontal
Bearings & shaft end
- Front
- 7008C / HQ1P4
- Rear
- 7007C / HQ1P4
- Shaft diameter
- Ø22 +0.010 / +0.006
- Thread
- M22×2
- Spigot length
- 34
- Thread length
- 25
Connections
- Power connector
- Front oil feed
- Rear oil feed
- Oil drain
- Cooling connectors ×2
Dimensions (mm)
- Body diameter
- Ø150 0 / −0.02
- Nose diameter
- Ø38
- Overall length
- 329.5
- Body length
- 250
- Nose projection
- 39.5
- Rear section
- 40
- Flange thickness
- 20
