132HY015Y5
Hydrostatic Spindles with External Motor
HOYO Technical Datasheet

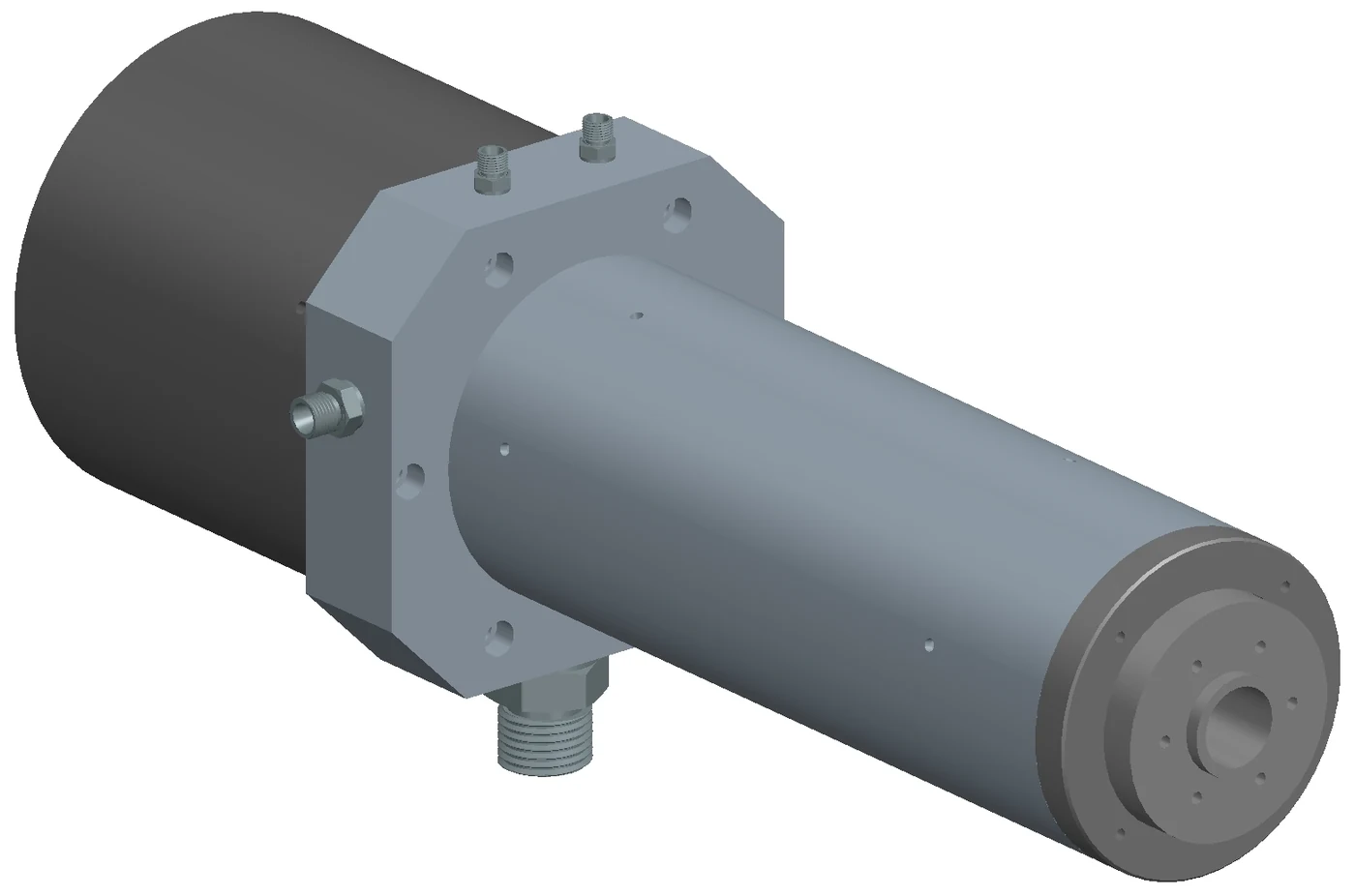

General view
Side

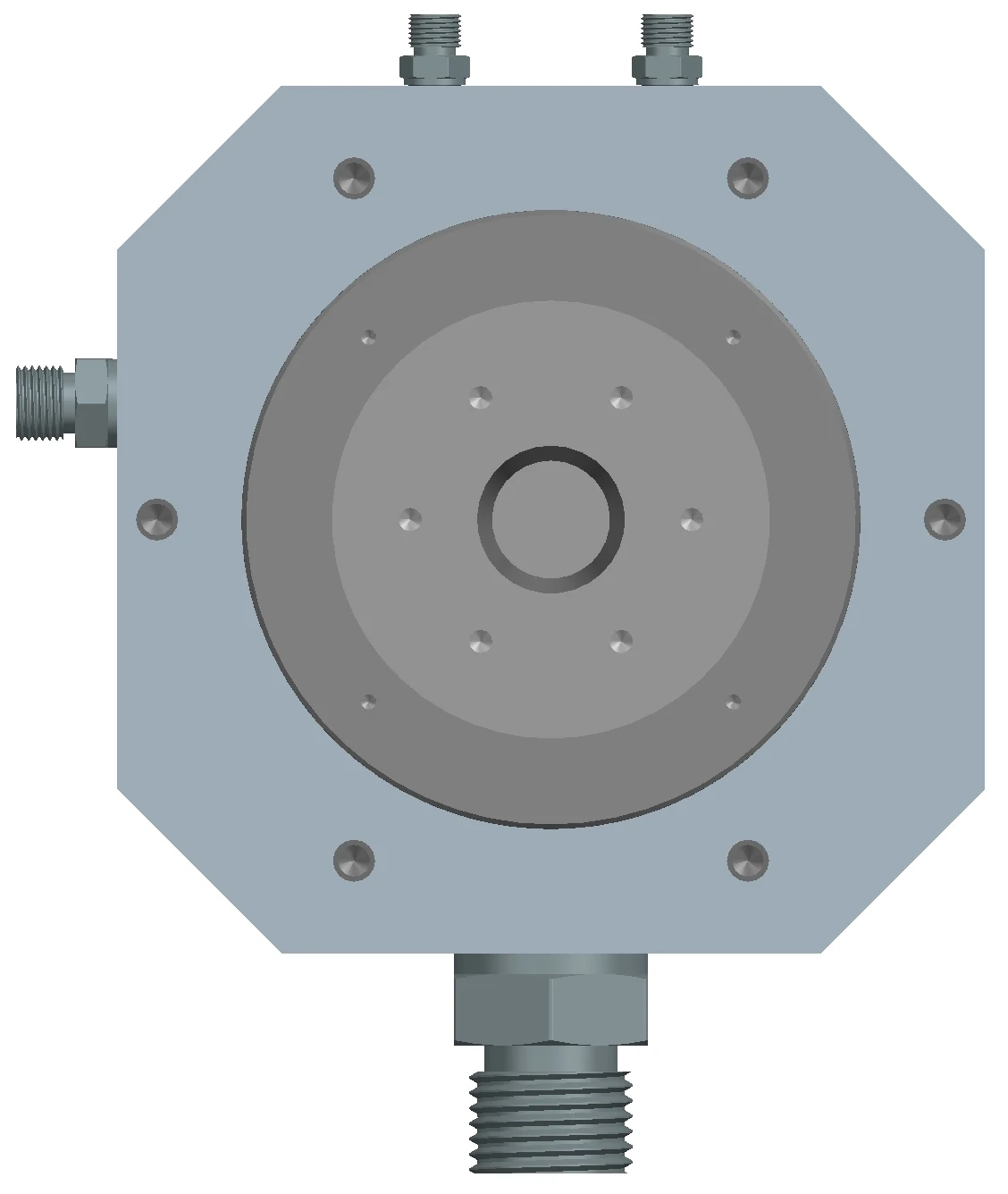

Connection face
Ratings
- Rated speed
- 1,500 rpm
- Rated power
- 5 kW (S1)
- Rated torque
- 32 N·m
- Rated frequency
- 300 Hz
- Rated voltage
- 380 V
- Rated current
- 8.8 A
- Motor
- Permanent-magnet synchronous, 22-pole
- Lubrication
- Oil
- Cooling
- Closed-loop water (or oil)
- Mounting
- Horizontal
- Encoder
- Magnetic gear encoder
- Temperature sensor
- PTC-130
Precision
- Nose face and taper runout
- ≤ 2 μm
- Internal taper radial runout
- ≤ 2 μm
- Vibration severity
- N max below 0.6 mm/s
Bearings & shaft end
- Type
- Hydrostatic oil film, no rolling bearings
- Nose diameter
- Ø40 −0.01 / −0.02
Connections
- Pressure test ×2
- Oil inlet
- Oil drain
- Encoder
- Power supply
- Cooling ×2
- Encoder connector
- M14×1.5 cable gland
- Cooling connector
- NPT 1/4 for Ø8 plastic tube
- Power and temperature sensor
- M25×1.5 cable gland
Dimensions (mm)
- Body diameter
- Ø132 −0.01 / −0.02
- Flange diameter
- Ø93
- Nose diameter
- Ø40 −0.01 / −0.02
- Motor housing
- 185 × 185
- Overall length
- 597
- Spindle length
- 377
- Nose projection
- 37
