120HY18Z6
Internal Grinding & Milling Spindles
HOYO Technical Datasheet

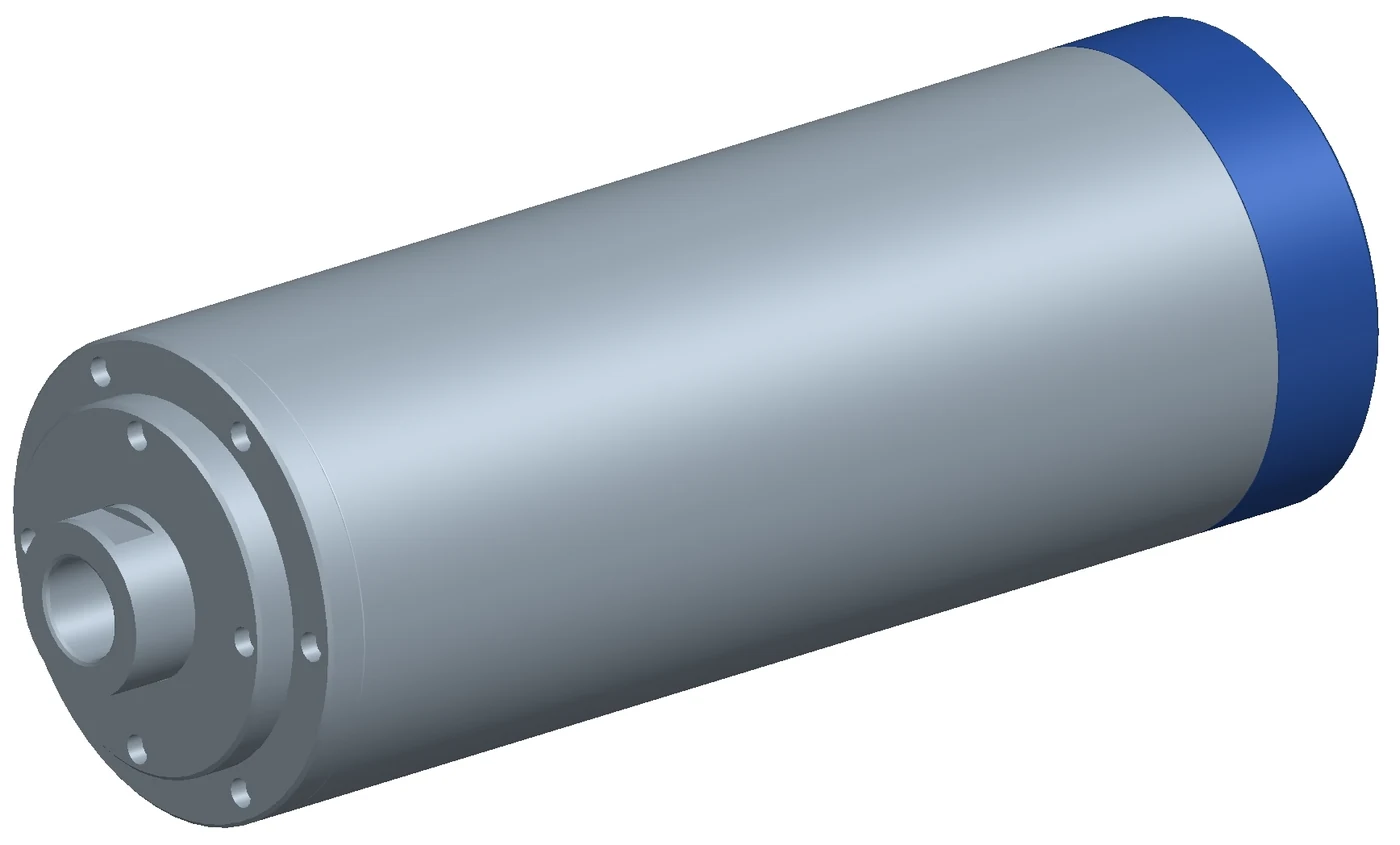

General view
Side

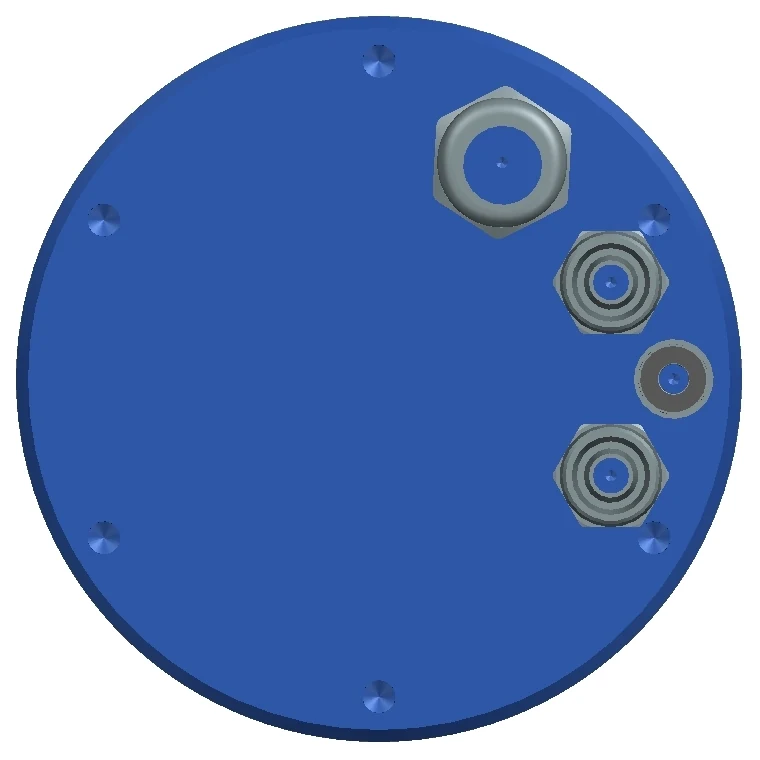

Connection face
Ratings
- Rated speed
- 18,000 rpm
- Rated power
- 6 kW (S1)
- Rated torque
- 3.3 N·m
- Rated frequency
- 600 Hz
- Rated voltage
- 380 V
- Rated current
- 13 A
- Motor
- Three-phase asynchronous, 4-pole
- Direction of rotation
- Counter-clockwise viewed from the wheel mounting end
- Lubrication
- Grease
- Cooling
- Closed-loop water (or oil), water preferred
- Sealing
- Labyrinth seal with positive pressure
- Mounting
- Horizontal
Bearings & shaft end
- Front
- 7009C / HQ1P4
- Rear
- 7007C / HQ1P4
- Shaft diameter
- Ø25
- Thread
- M25×2
- Spigot length
- 19
- Thread length
- 25
Connections
- Power supply
- Cooling ×2
- Air seal
Dimensions (mm)
- Body diameter
- Ø120 0 / −0.02
- Flange diameter
- Ø92
- Nose diameter
- Ø43
- Overall length
- 349
- Body length
- 279
- Nose projection
- 38
- Rear section
- 32
- Flange thickness
- 17.8
